MSI Gold Mining Equipment

Madden Steel Inc.

112 TPH
ELECTRIC

Duplex Jigs

MSI's 50 inch Duplex Gold jigs can process up to 56 tons per hour of solids at a recovery rate of 90 to 98 percent down to 400 mesh (37 micron) gold.   More Info

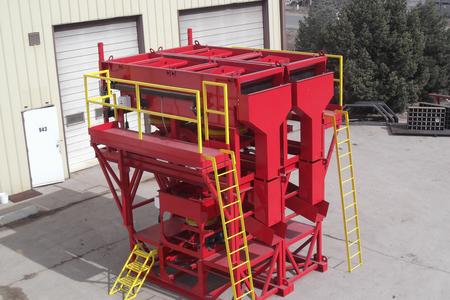

Duplex and 4Plex Jigs Plants

Our 50-inch roughing Duplex and 4Plex jigs are able to process up to 112 tons of solid materials per hour. They have the ability to recover gold down 400 mesh (37 microns).  More Info

Back to Home Page

56 TPH
VARY SPEED
VARY SPEED

Gold Roughing Jigs

Achieve recovery rates of 90 to 98 percent.

Gold Jig

When operating a wash plant using jigs, the typical process to achieve recovery rates of 90 to 98 percent should be done in a step down concentration method. The first step is to process ore through a roughing jig. Second step, process its concentrate through a cleaner jig. The third step is to process its concentration through our Enhancer or a roughing table. Then the final separation is processed across the Xtruder table.

ELECTRIC
